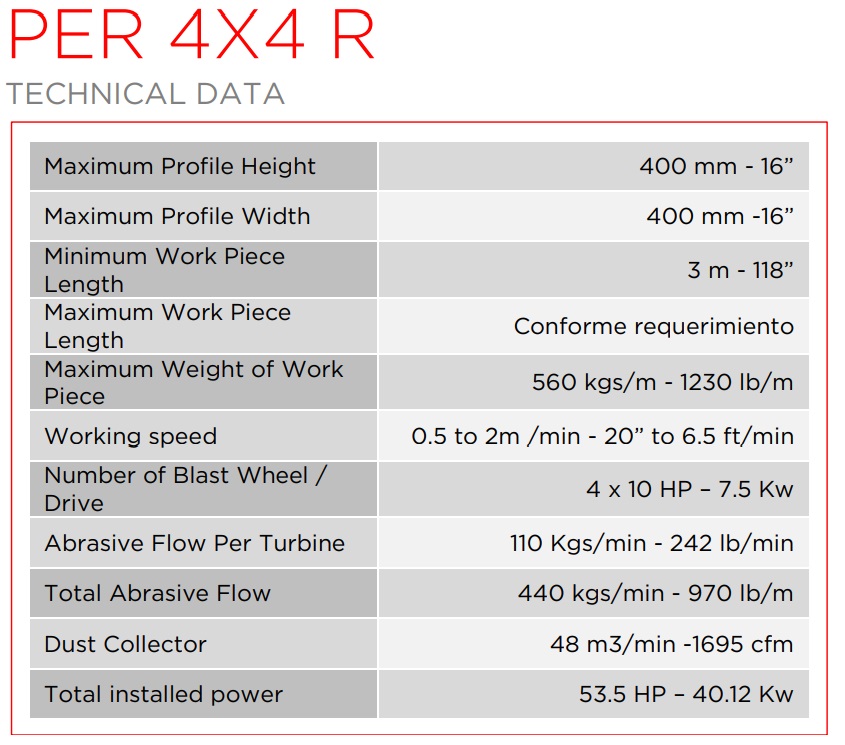

PER 4X4 R

  • MOST EFFICIENT SELF CONTAINED SHOT BLASTER FOR PROFILES, STRUCTURAL STEEL AND BEAMS.
  • AUTOMATIC CLEANING PROCESS.
  • ENVIROMENTALLY FRIENDLY.
  • CONSISTENCY FINISH.



RELEVANT FEATURES

  • Automatic shot blasting process, does not require skilled labor
  • Handle profiles up to 40-inch (1m) X 31 inch (0.8 m), including beams, angles, bars and tubes
  • Four blasting turbines positioned 90 degrees to the passage of parts producing up to white metal finish conditions
  • For long life, the blast cabinet is made of steel 1010 with internal layer of manganese Steel (11/14%)
  • Additionally, reinforcement in hot areas with high chrome cast steel plates (≥64Rc hardness)
  • Blowers and external auger for the return of shot accumulated in blasted profiles
  • Highly efficient abrasive recovery and separation system to prolong shot life
  • Complete state-of-the-art air filter unit guarantee a dust free environment.
  • Constructed in compliance with CE or NEMA standard regulations.
  • Optional
    • Electric motion detection sensor for elevator belt, screw and roller conveyor
    • Abrasive flow valve control with electrical linear actuators controlled by HMI
    • Transfer for loading and unloading parts



DOWNLOAD BROCHURE
